3-Electrode Vacuum Fiber Tapering System（VTS-10）
Product Description
The VTS-10 series is dedicated to the R&D and production of ultra-high power signal combiners and pump combiners. The system adopts 3-electrode vacuum plasma arc heating technology, which utilizes pure analog modulation to quickly and linearly adjust the output high voltage for precise temperature control.
Features

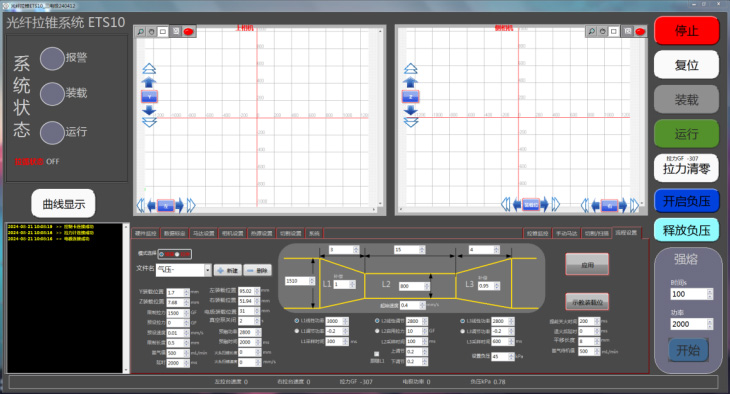

? Dual CCD taper scanning and analysis
? Real-time tension monitoring
? Fine adjustment of taper profile
? Adjustable negative pressure
Specification
Parameter | Unit | Specification |
Tapering Length | um | 0~100 |
Tapering Displacement Accuracy | um | ±0.1 |
Electrode X-axis DisplacementLength | mm | 0~60 |
Electrode Heating Power | W | 50~500 |
Tapering Direction | - | Left and Right |
CCD Pixel | pix | 500 |
Negative Pressure | kPa | 0~70 |
Working Temperature | ℃ | 23±2 |
Working Humidity | %RH | 50~60 |
Power Supply | V/HZ | AC110~220/50~60 |
Working Current | A | 0~40 |
Overall Dimension (L×W×H) | mm | 715*530*320 |
Standard Accessories List
Accessory | Model | Unit | Quantity |
3-Electrode Vacuum FiberTapering System (with PC) | VTS-10 | set | 1 |
Electrode rods | - | pair (3 pcs) | 1 |
Fiber holder | FH-(Provide according tothe size request) | pair | 1 |
Electrode cleaner | - | piece | 1 |
Certificate of Conformity | - | copy | 1 |
Warranty Card | - | copy | 1 |
User Manual | - | copy | 1 |
Wooden packing case | - | piece | 1 |
